BOCHU BOCI Tube Bevel Nozzle 3D
BOCHU BOCI Tube Bevel Nozzle 3D
Couldn't load pickup availability
Safe & secure checkout
This product lists BOCHU BOCI tube-bevel / 3D nozzles in single- and double-layer configurations. Each Part Number in the table opens its matching purchasing option.
Listed Cutting-Head Models
The following model list applies to the eleven configurations shown in the table, not to unlisted configurations:
BLT421T, BLT441T, BLT461T, BLT442T, BLT462T, BLT520H, BLT540H, BLT560H, BLT421TS, BLT310T, BLT510, BLT520.
Part Numbers and Options
| Part Number | Option | Layer | Aperture |
|---|---|---|---|
| DY.Z.E0020AA | D1.2-T | Double | 1.2mm |
| DY.Z.E0011AA | D1.4-T | Double | 1.4mm |
| DY.Z.E0024AA | D1.6-T | Double | 1.6mm |
| DY.Z.E0026AA | D1.8-T | Double | 1.8mm |
| DY.Z.E0028AA | D2.0-T | Double | 2.0mm |
| DY.Z.E0023AA | S1.6-T | Single | 1.6mm |

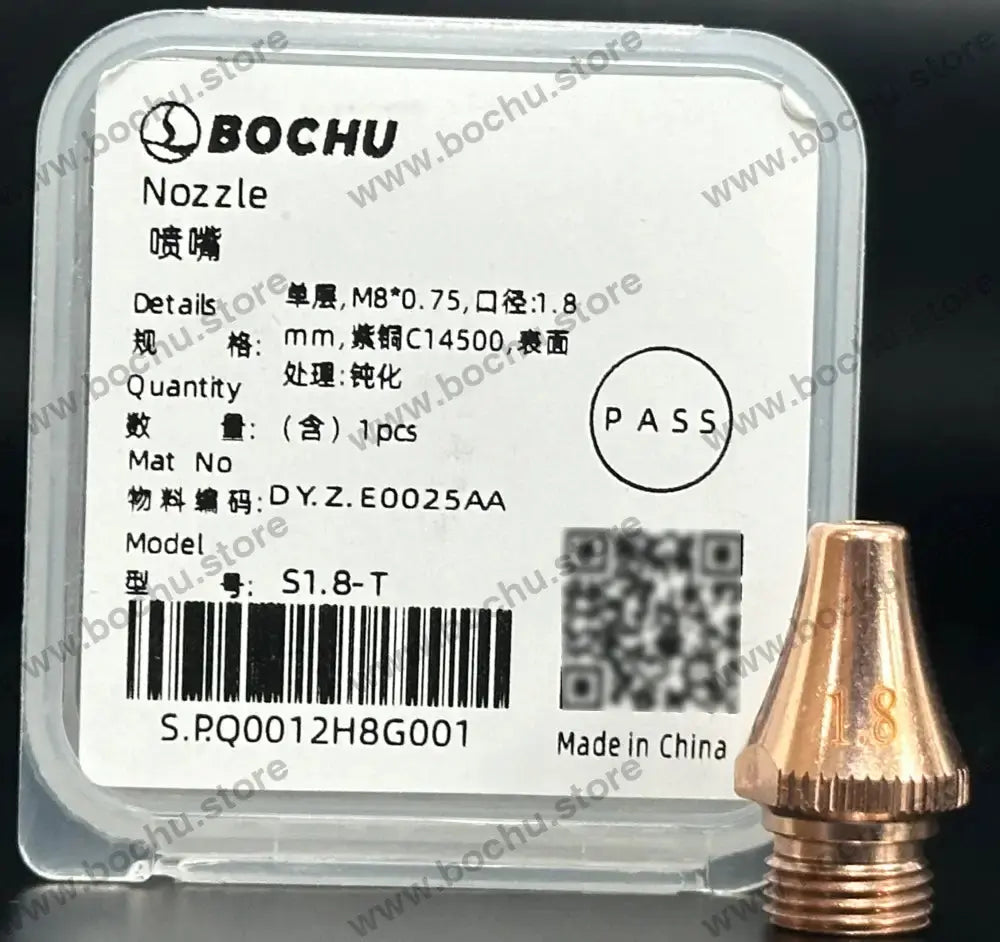

| DY.Z.E0025AA | S1.8-T | Single | 1.8mm |
| DY.Z.E0027AA | S2.0-T | Single | 2.0mm |
| DY.Z.E0030AA | S3.0-T | Single | 3.0mm |
| DY.Z.E0032AA | S4.0-T | Single | 4.0mm |
| DY.Z.E0033AA | S5.0-T | Single | 5.0mm |
Quick Answers
Does the shared model list make these options interchangeable?
No. The model list applies to all eleven options shown, but their layers and apertures remain distinct. Choose the required configuration, not another option simply because the cutting-head model matches.
Is Tube Bevel the same as Flat Bevel or Common nozzles?
No. Tube Bevel / 3D, Flat Bevel / 2D Bevel and 2D Common are separate product families. A shared aperture, thread or similar appearance does not establish a substitute.
Ordering and Related Resources
Match the complete Part Number and option label to your required layer and aperture, then confirm the listed cutting-head model. If your part record is incomplete, use the BOCHU / BOCI replacement-part confirmation guide before choosing a replacement. Browse the Tube Bevel Nozzles collection for this product family.
