Original BOCHU BOCI 3D tube-bevel nozzle family with the listed single/double aperture options and model mappings. Confirm the tube/bevel family, layer or structure, aperture, exact part number and listed BLT model where provided.
Apertures, Part Numbers and Matching Models

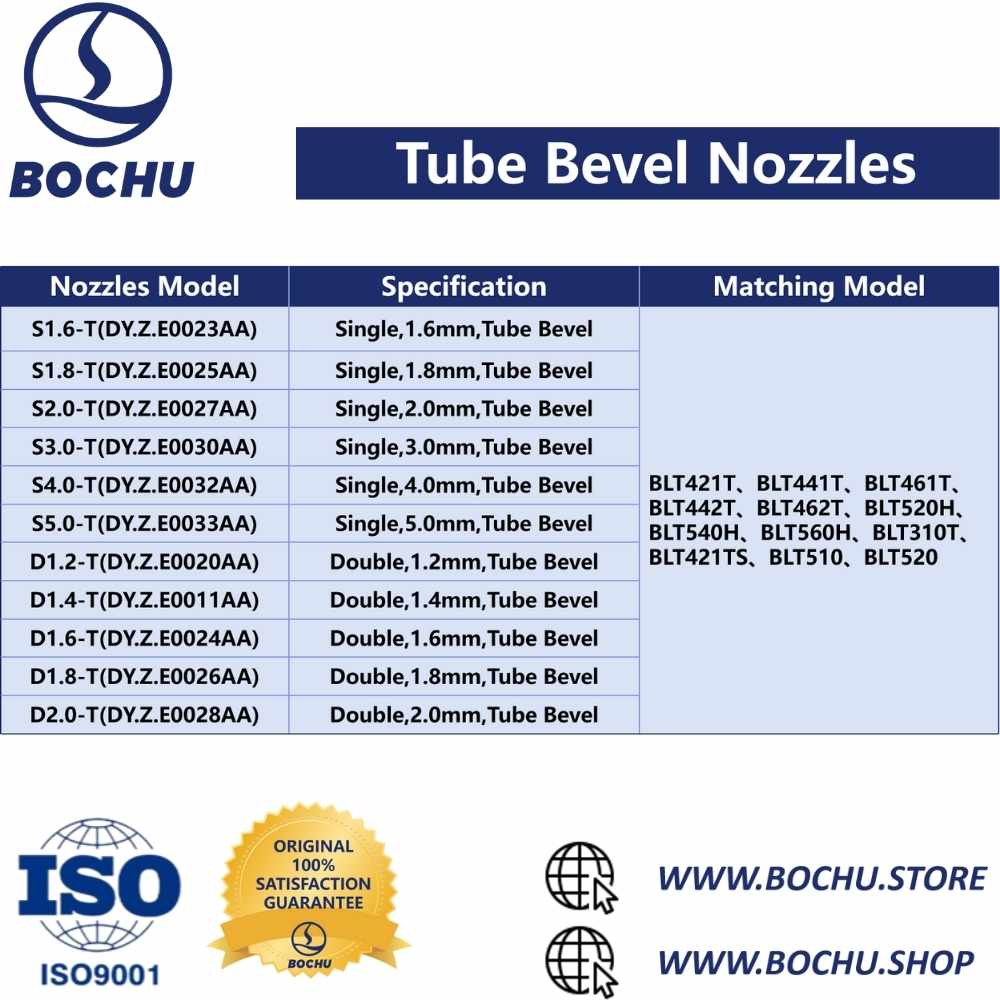

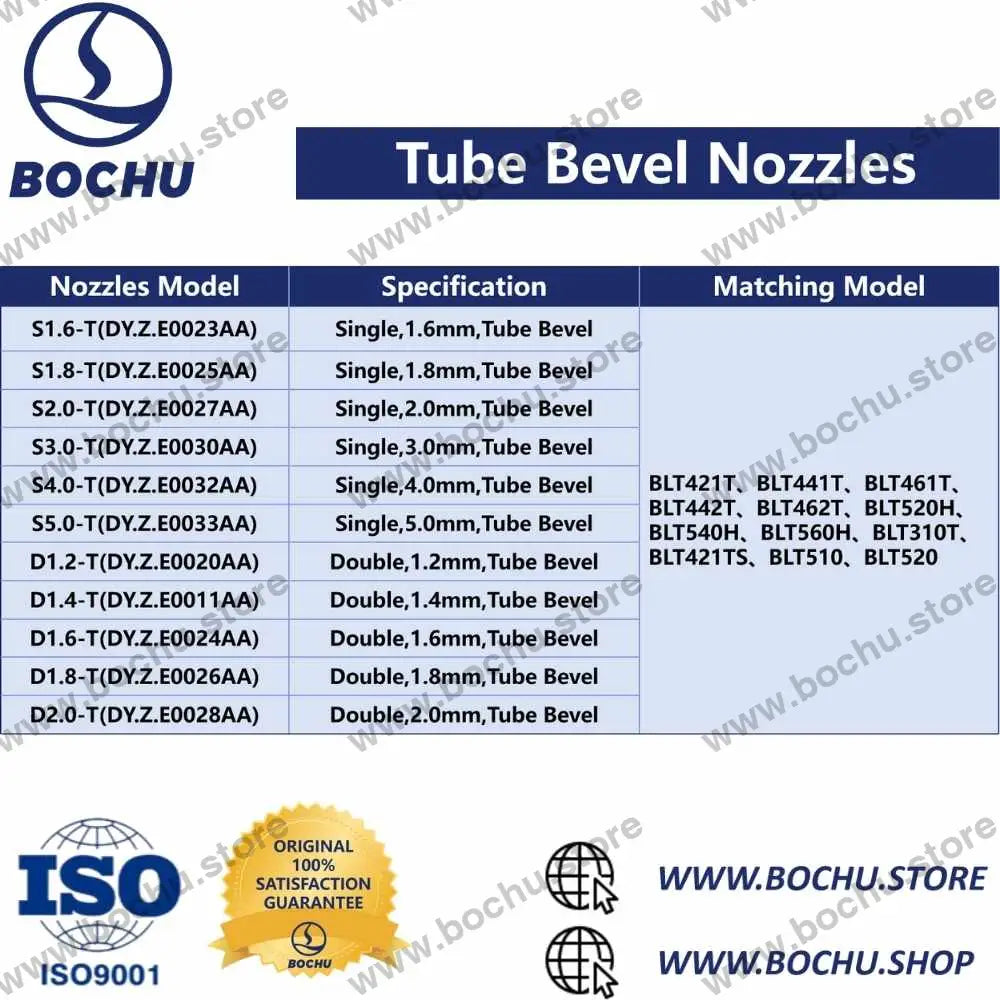

| Part number | Specification | Matching Model |

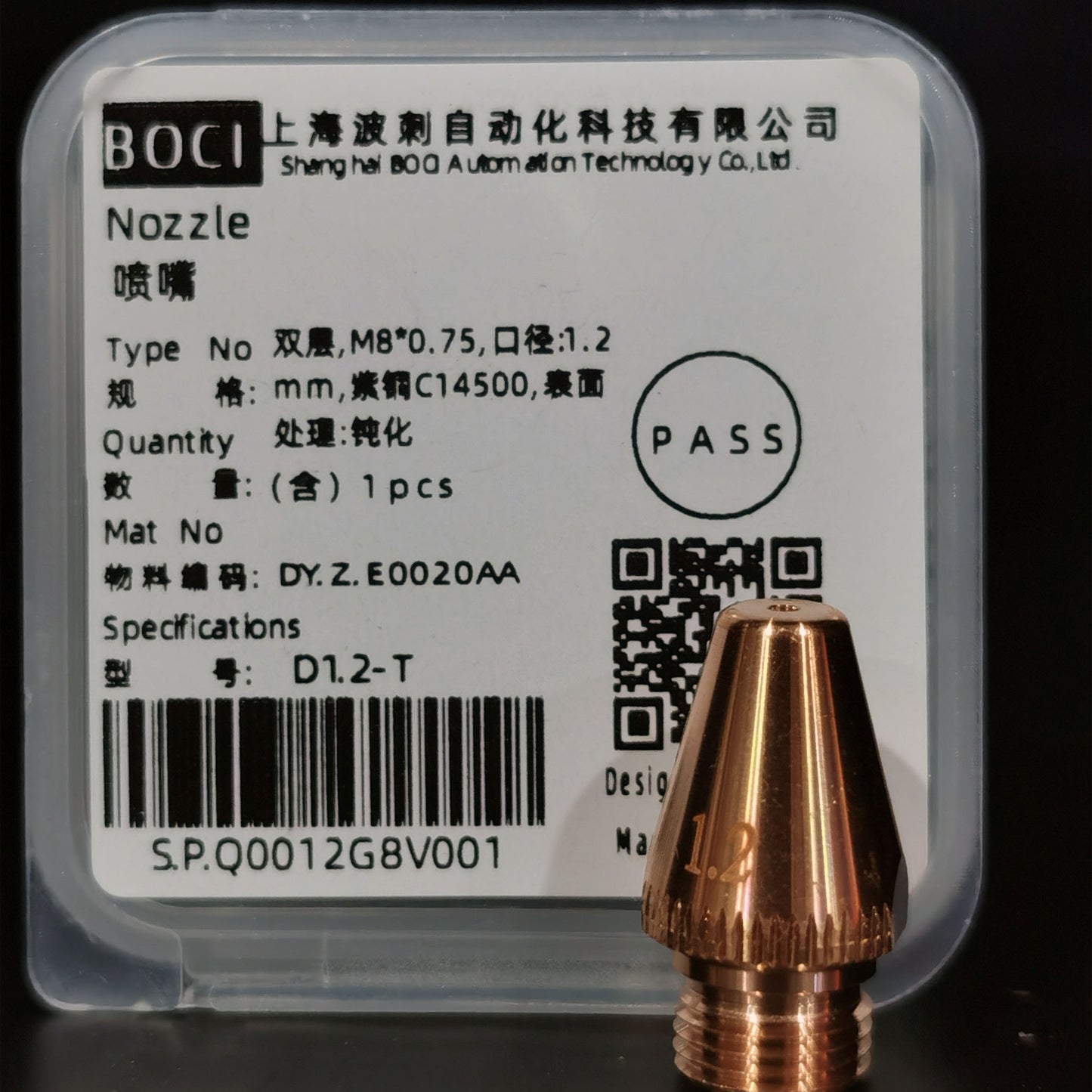

| DY.Z.E0020AA | Double,1.2mm,Tube Bevel | BLT421T, BLT441T, BLT461T, BLT442T, BLT462T, BLT520H, BLT540H, BLT560H, BLT421TS, BLT310T, BLT510, BLT520 |

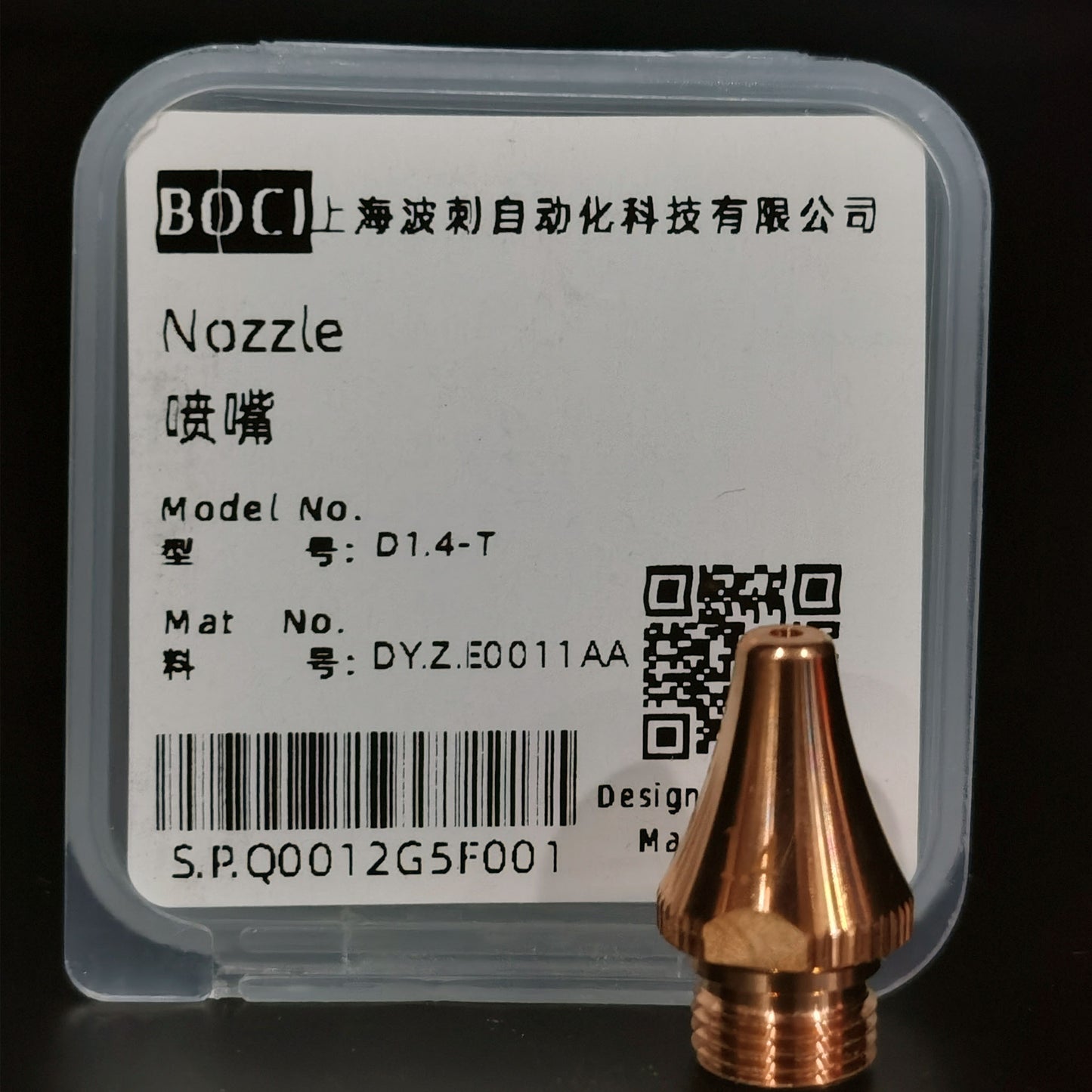

| DY.Z.E0011AA | Double,1.4mm,Tube Bevel | |

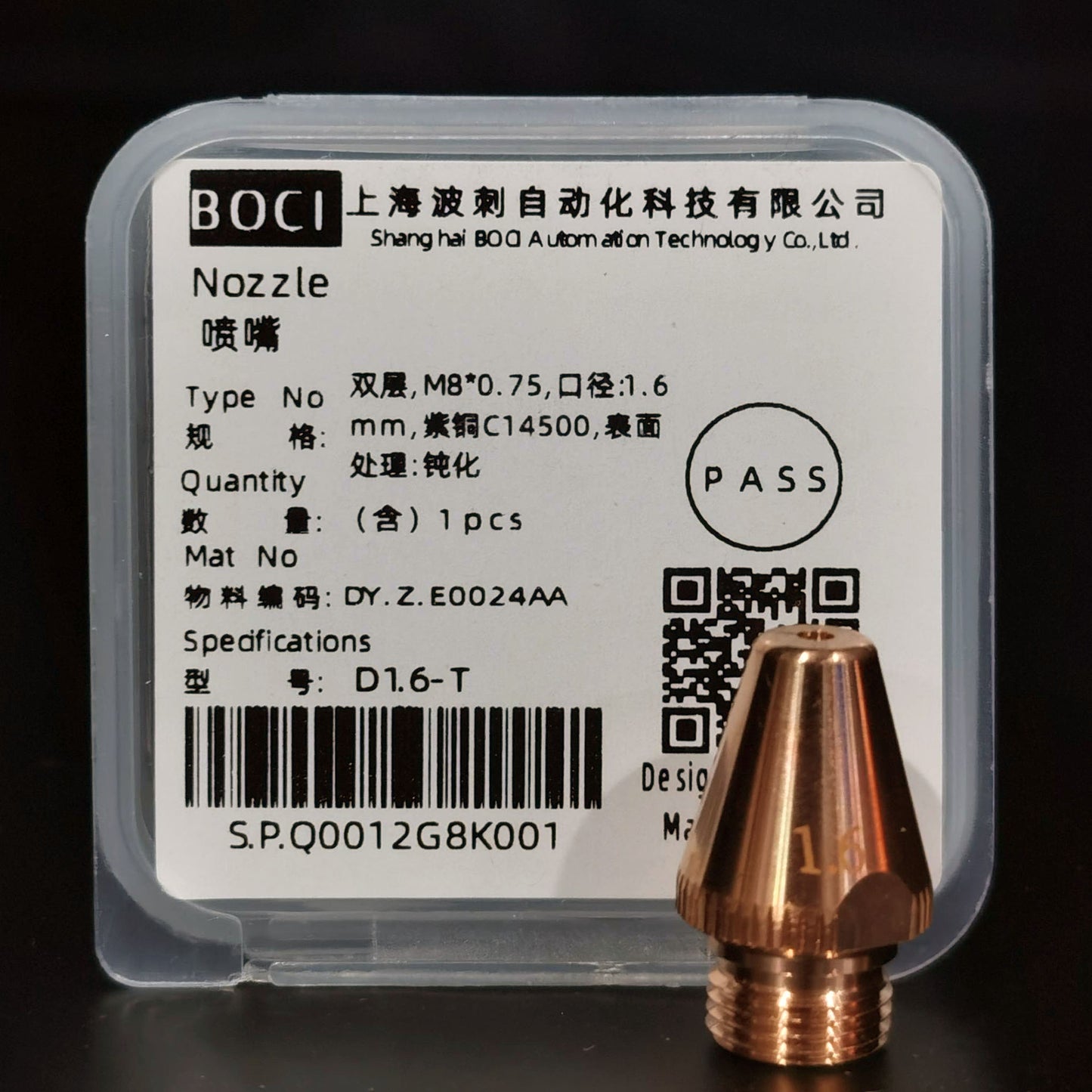

| DY.Z.E0024AA | Double,1.6mm,Tube Bevel | |

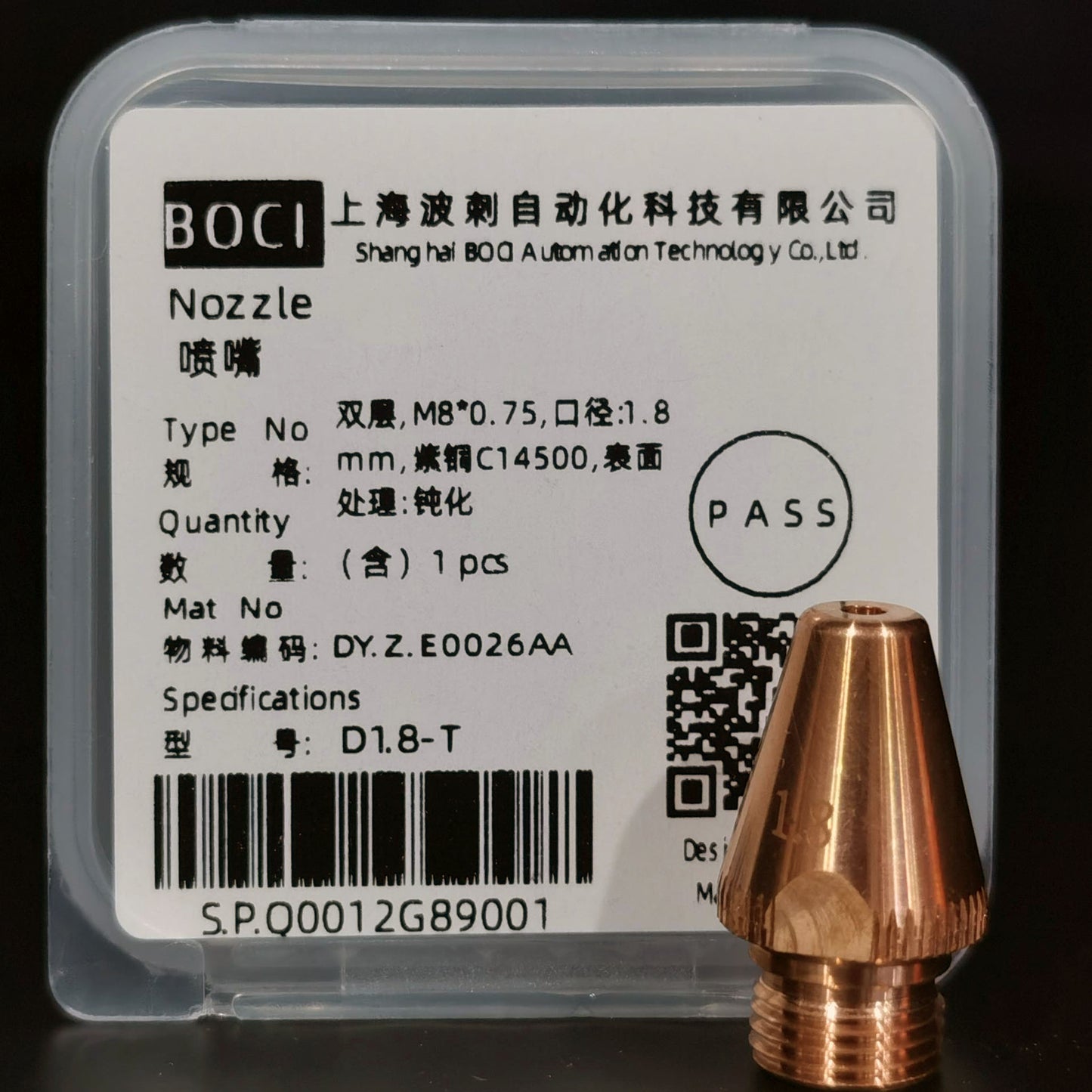

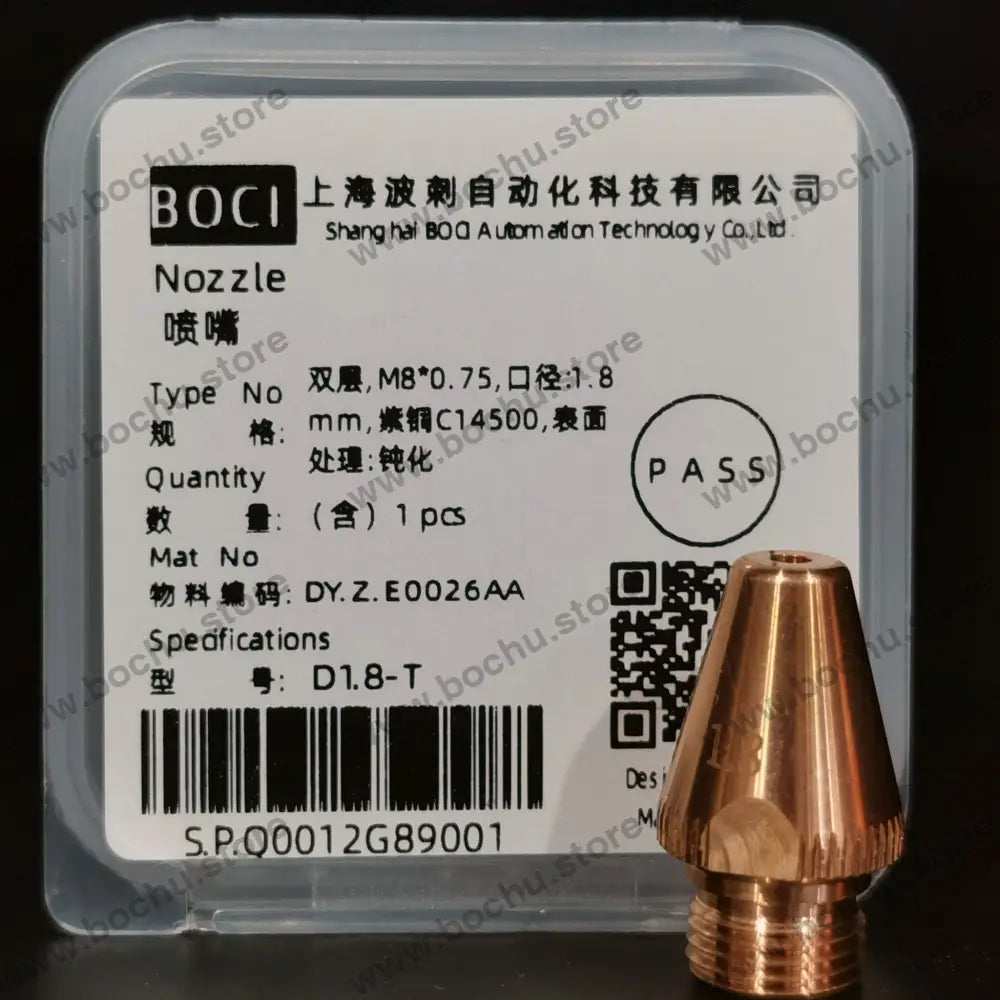

| DY.Z.E0026AA | Double,1.8mm,Tube Bevel | |

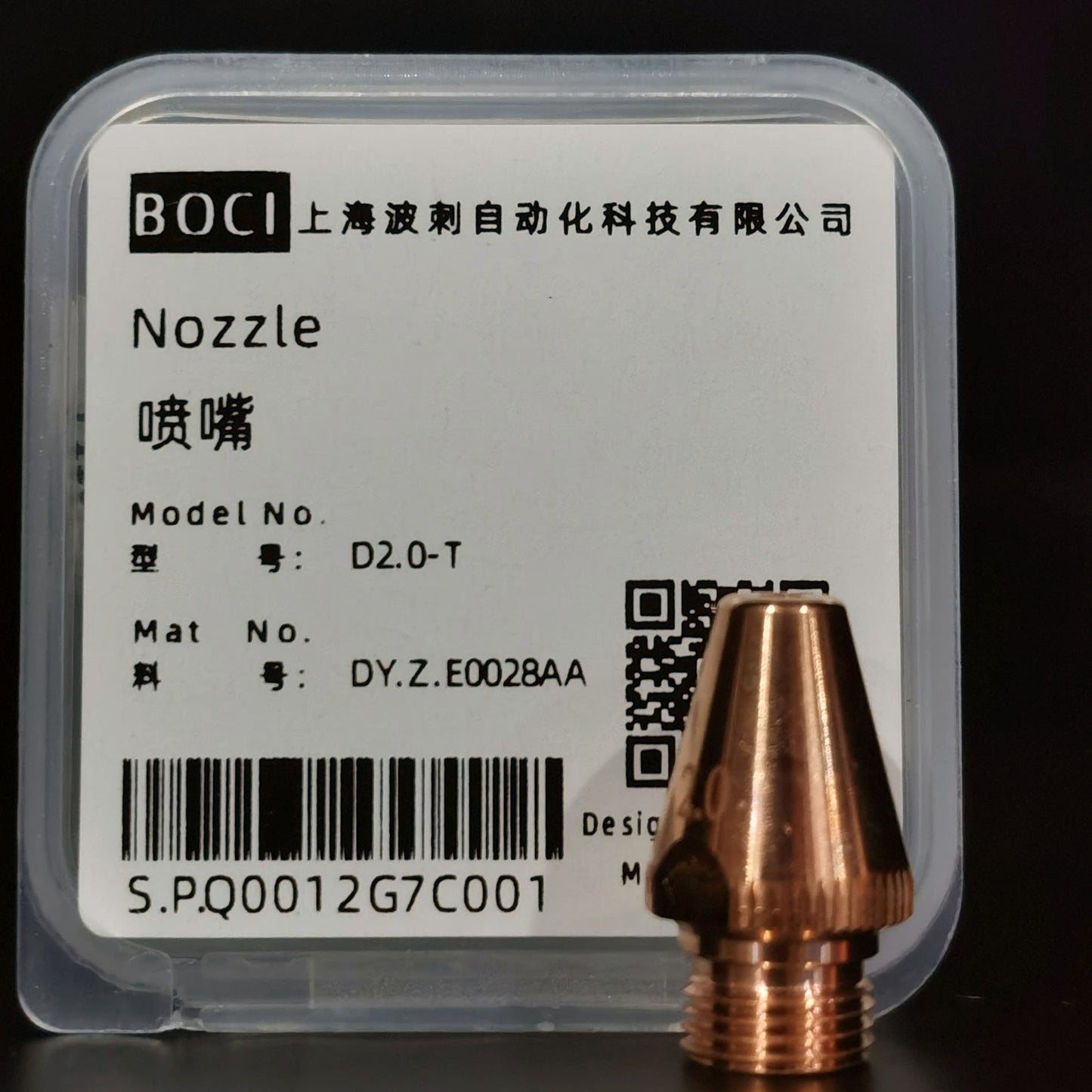

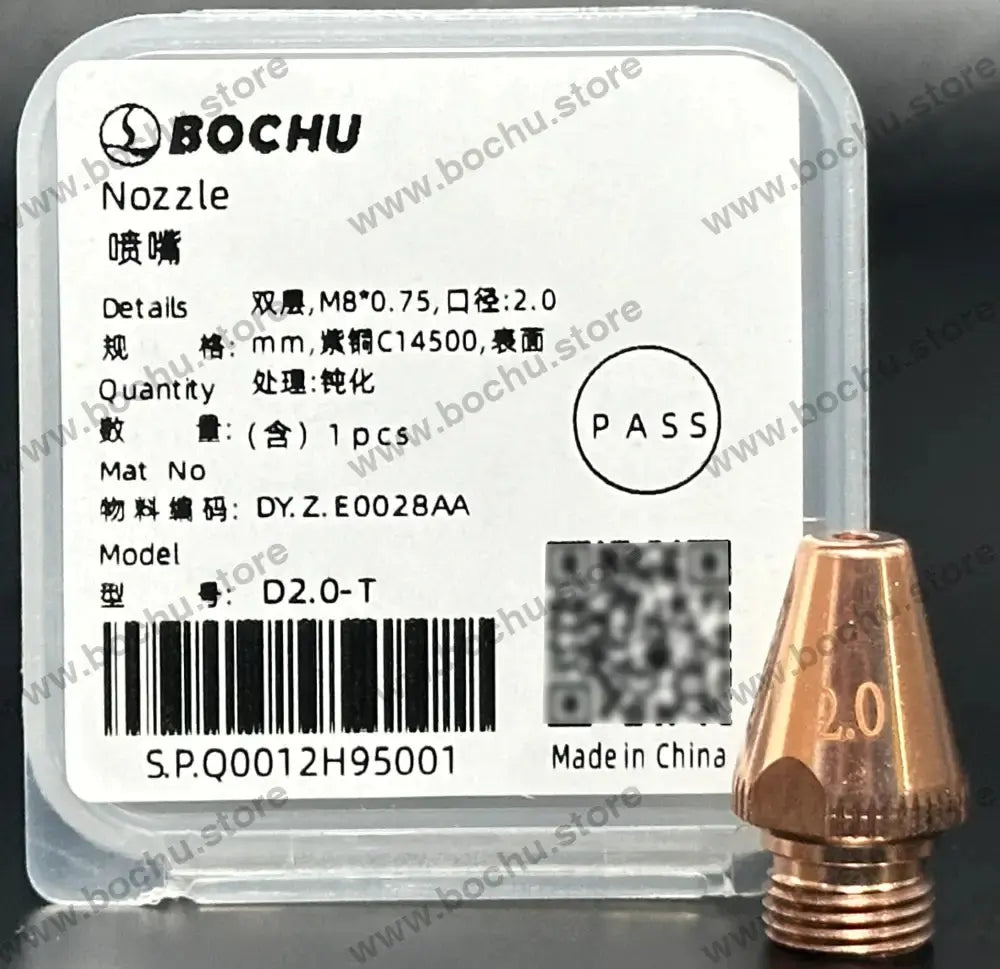

| DY.Z.E0028AA | Double,2.0mm,Tube Bevel | |

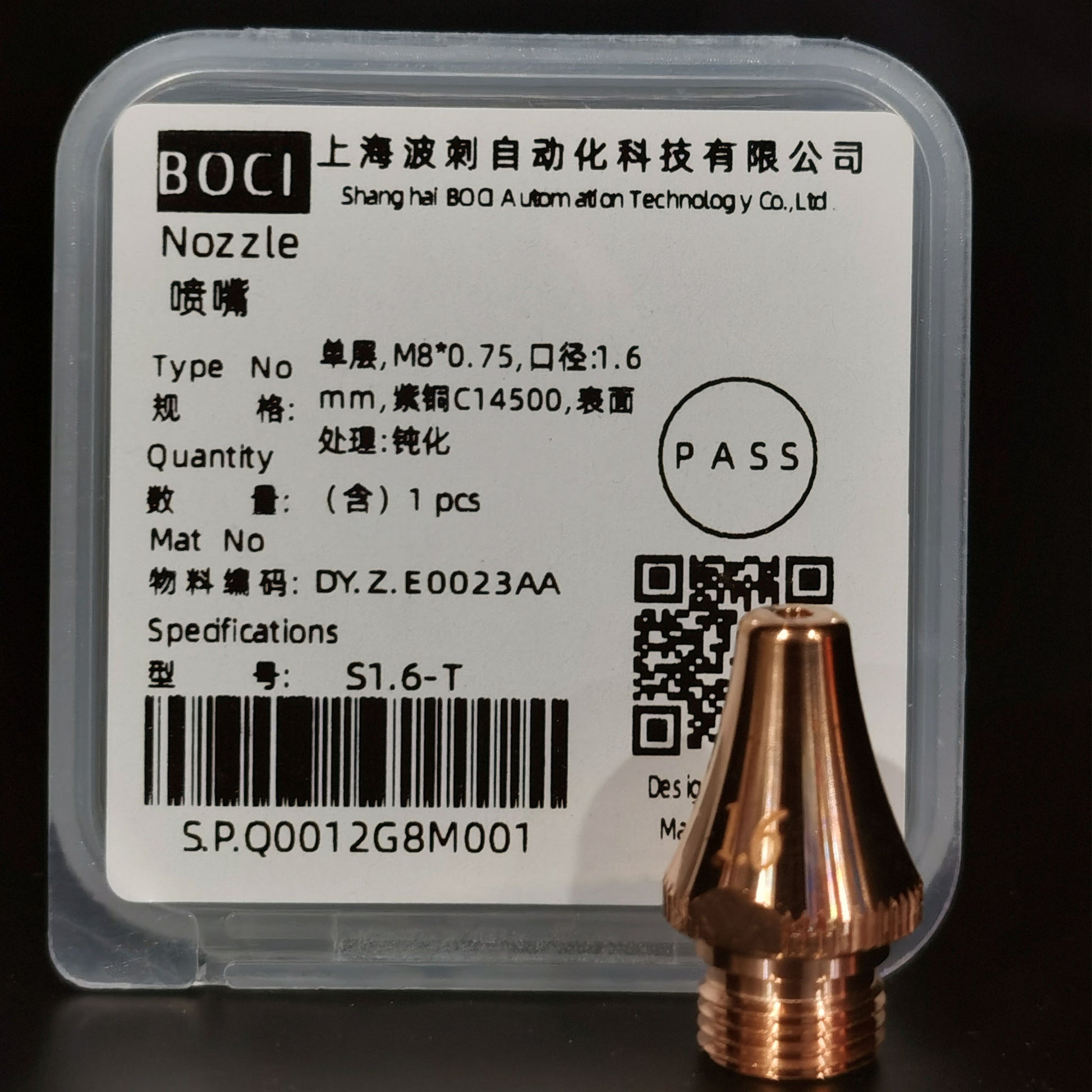

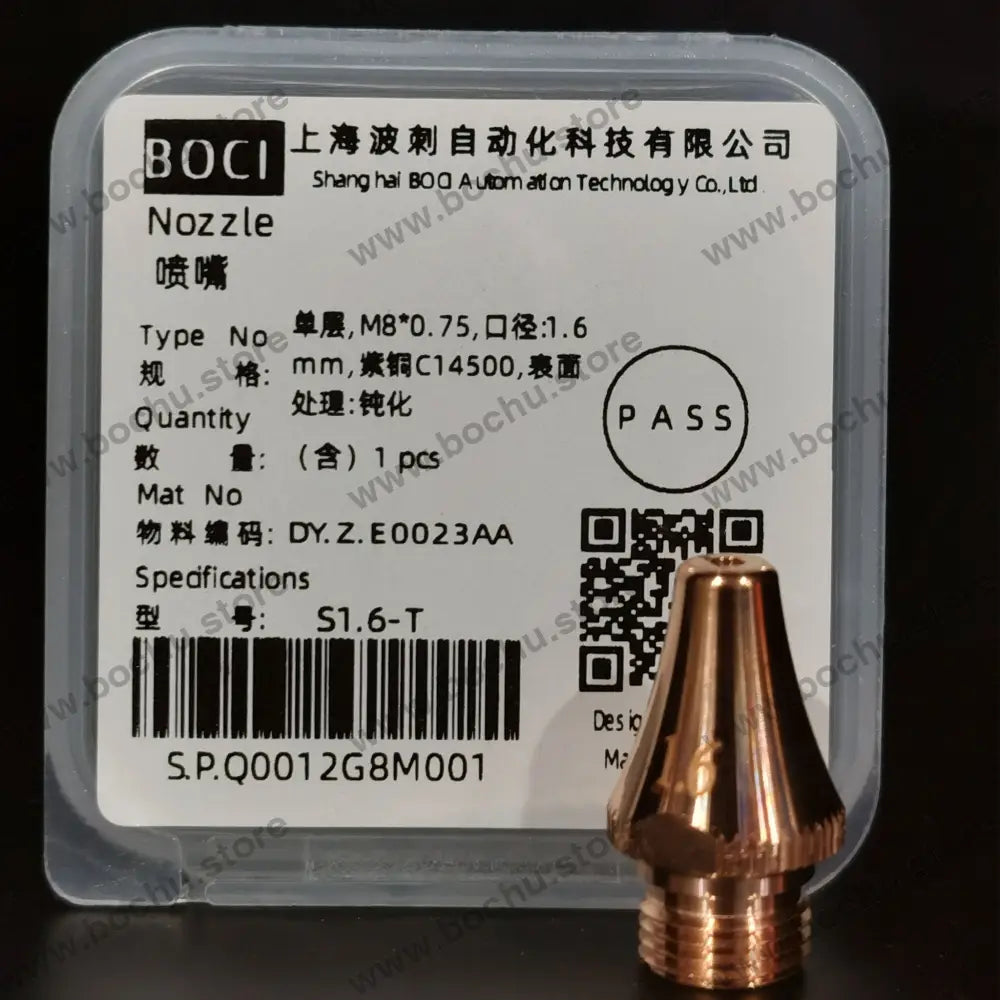

| DY.Z.E0023AA | Single,1.6mm,Tube Bevel | |

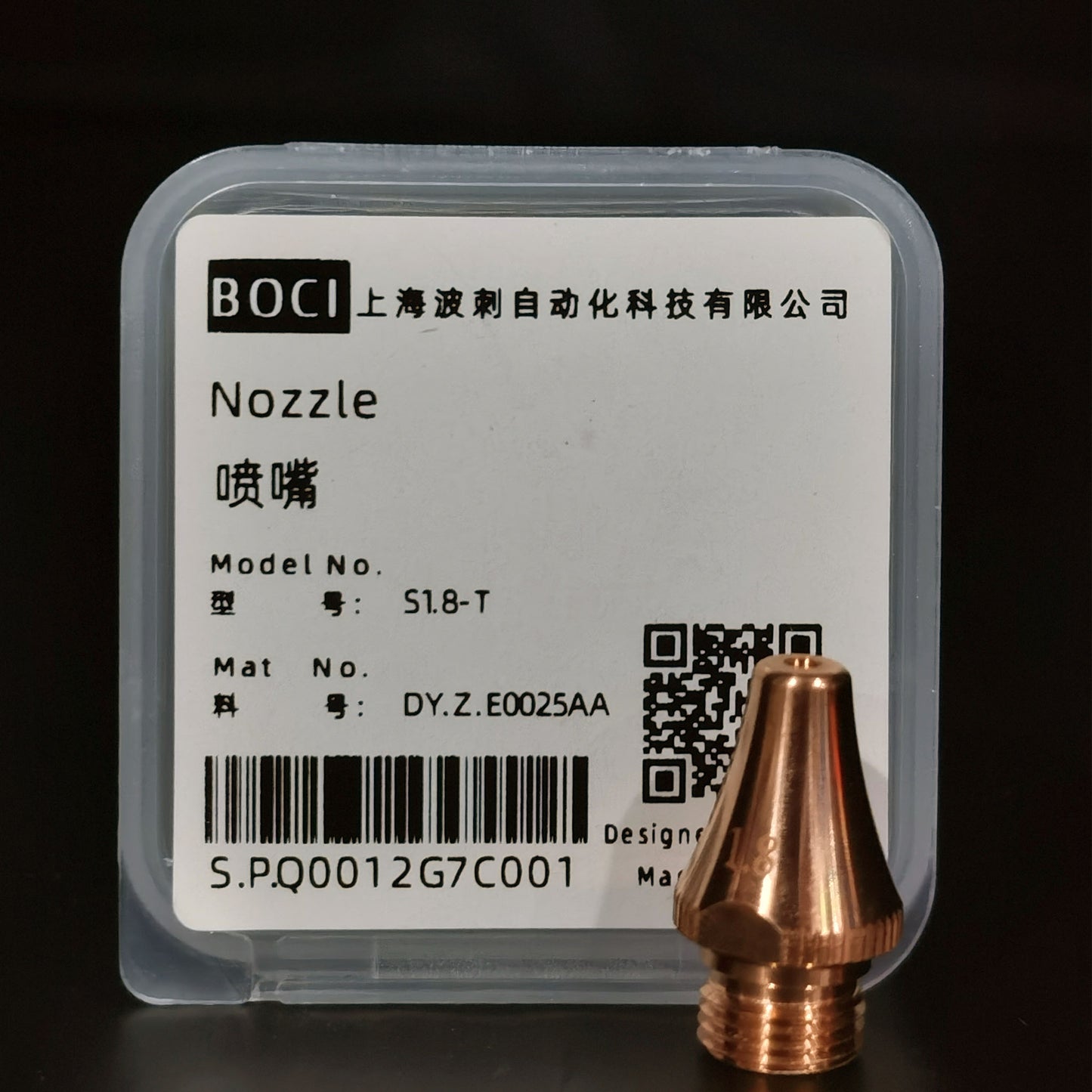

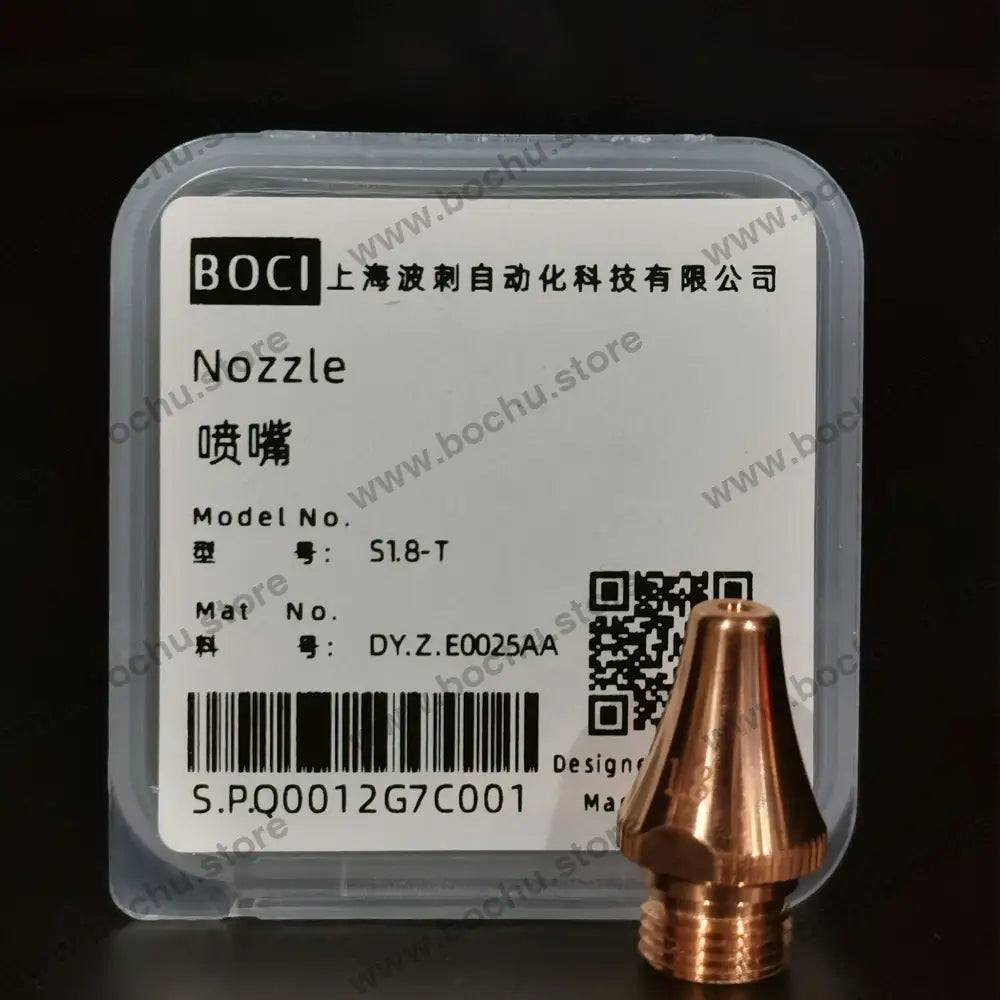

| DY.Z.E0025AA | Single,1.8mm,Tube Bevel | |

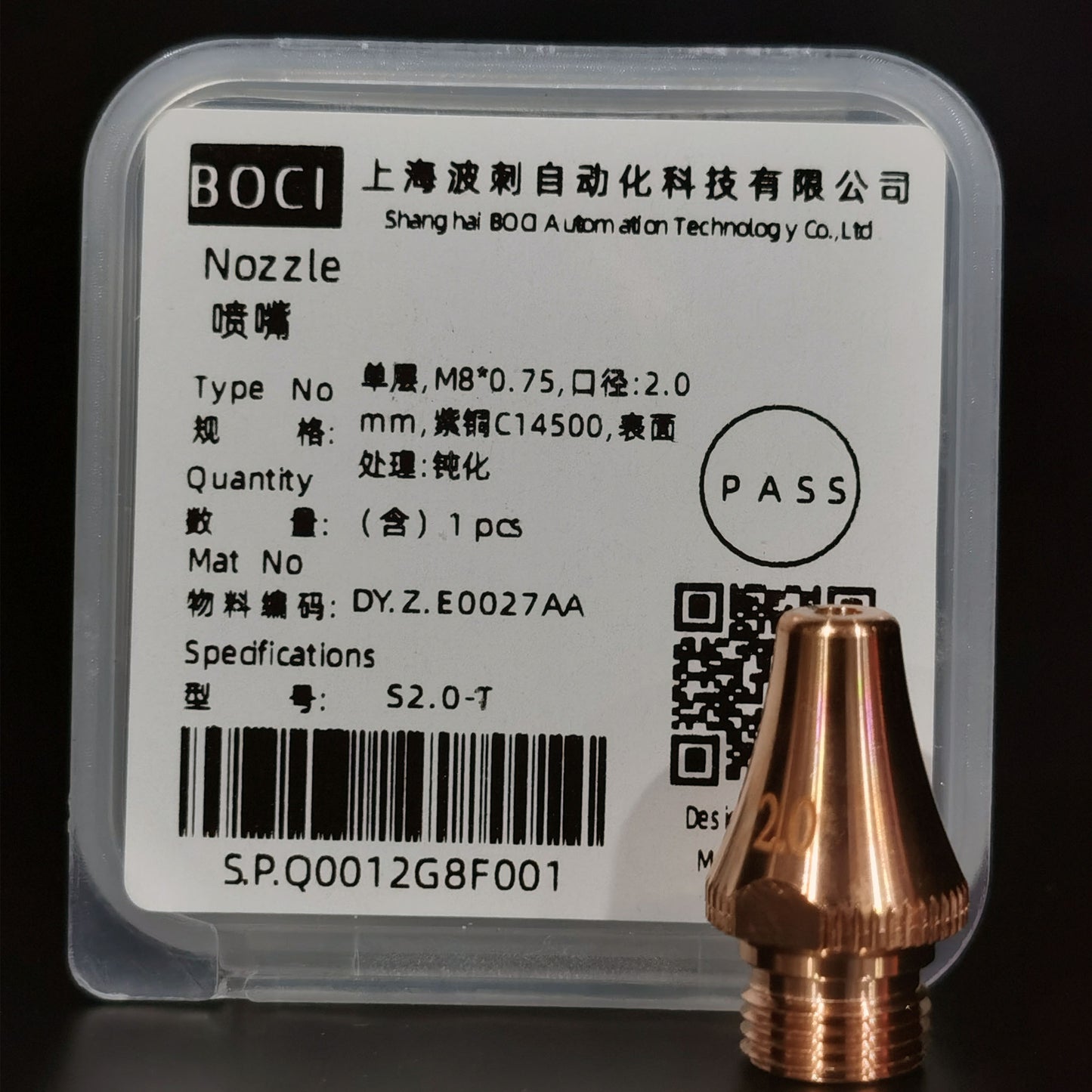

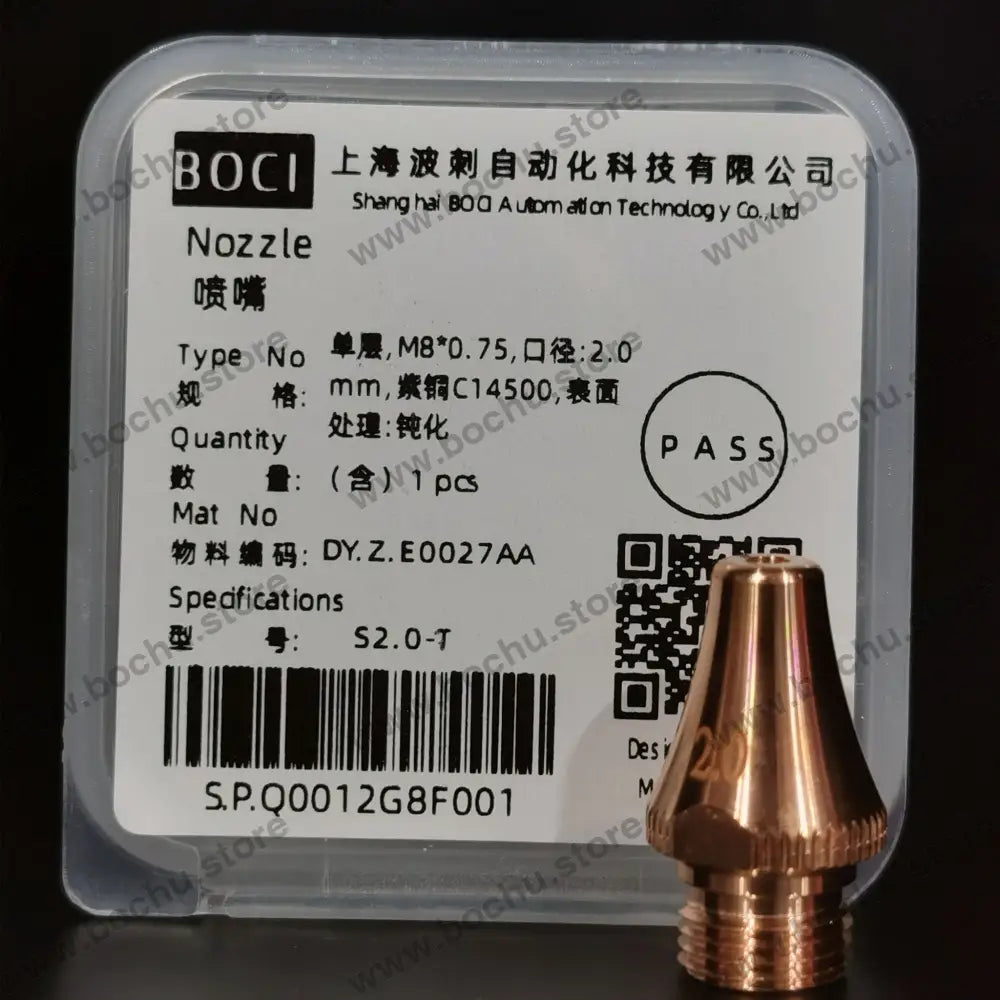

| DY.Z.E0027AA | Single,2.0mm,Tube Bevel | |

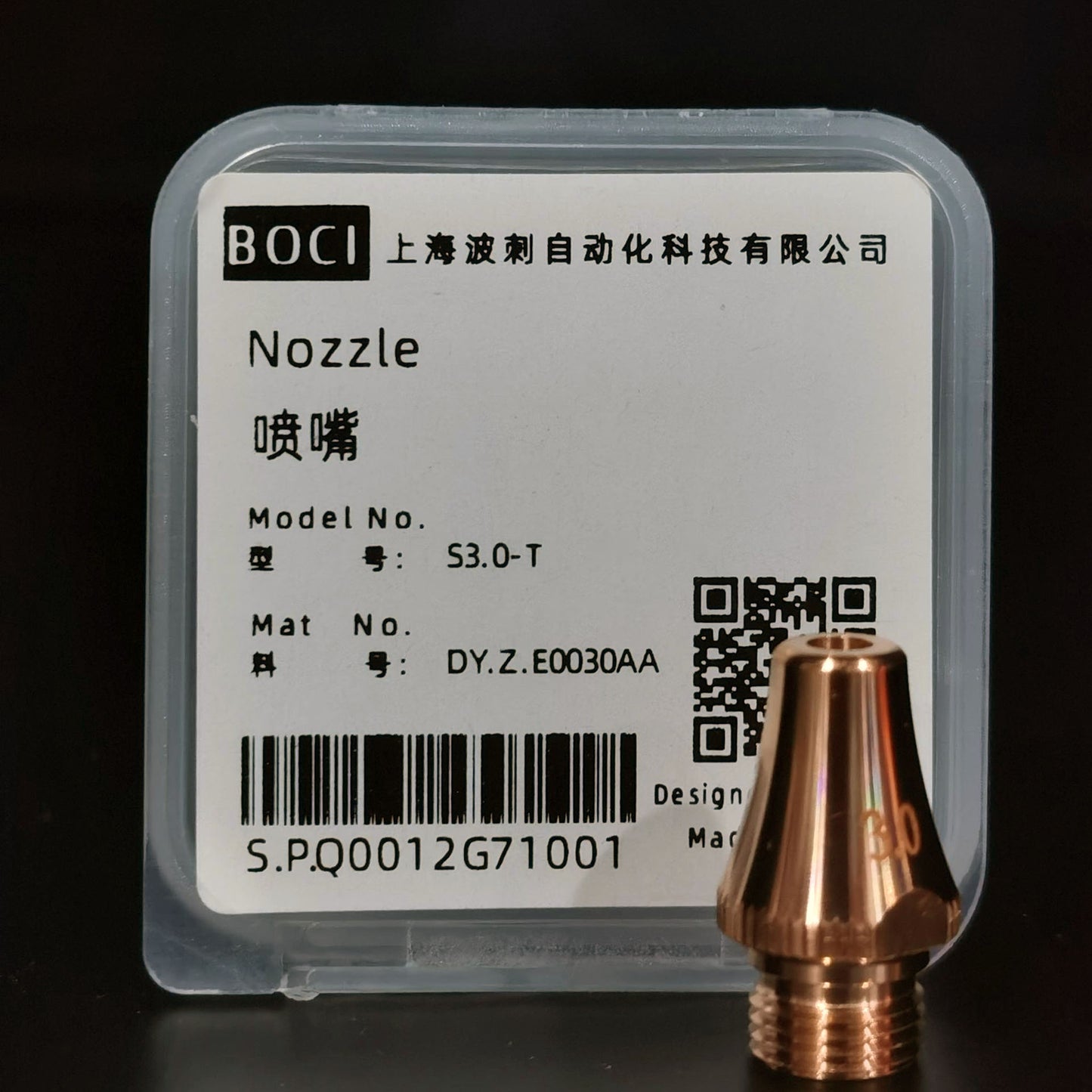

| DY.Z.E0030AA | Single,3.0mm,Tube Bevel | |

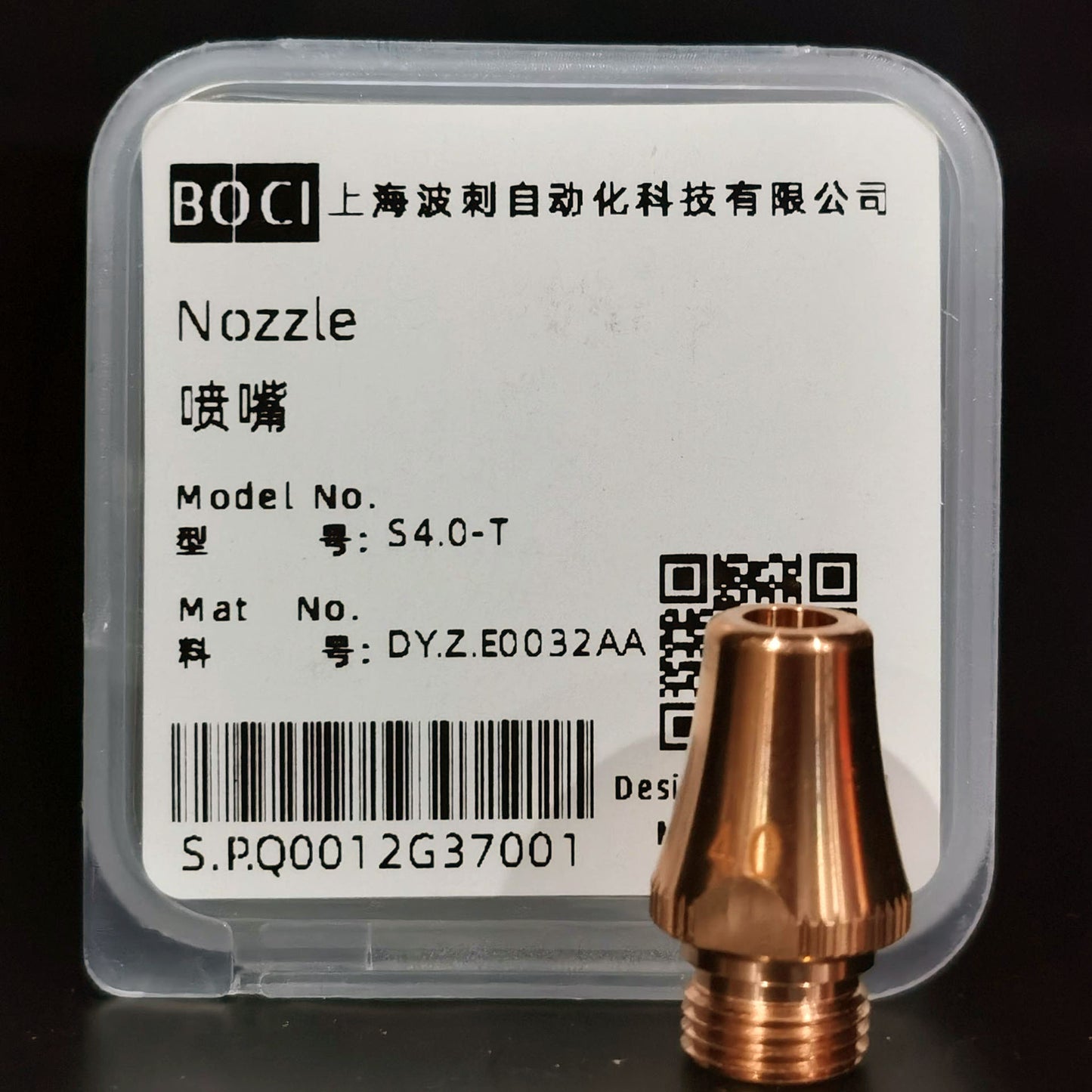

| DY.Z.E0032AA | Single,4.0mm,Tube Bevel | |

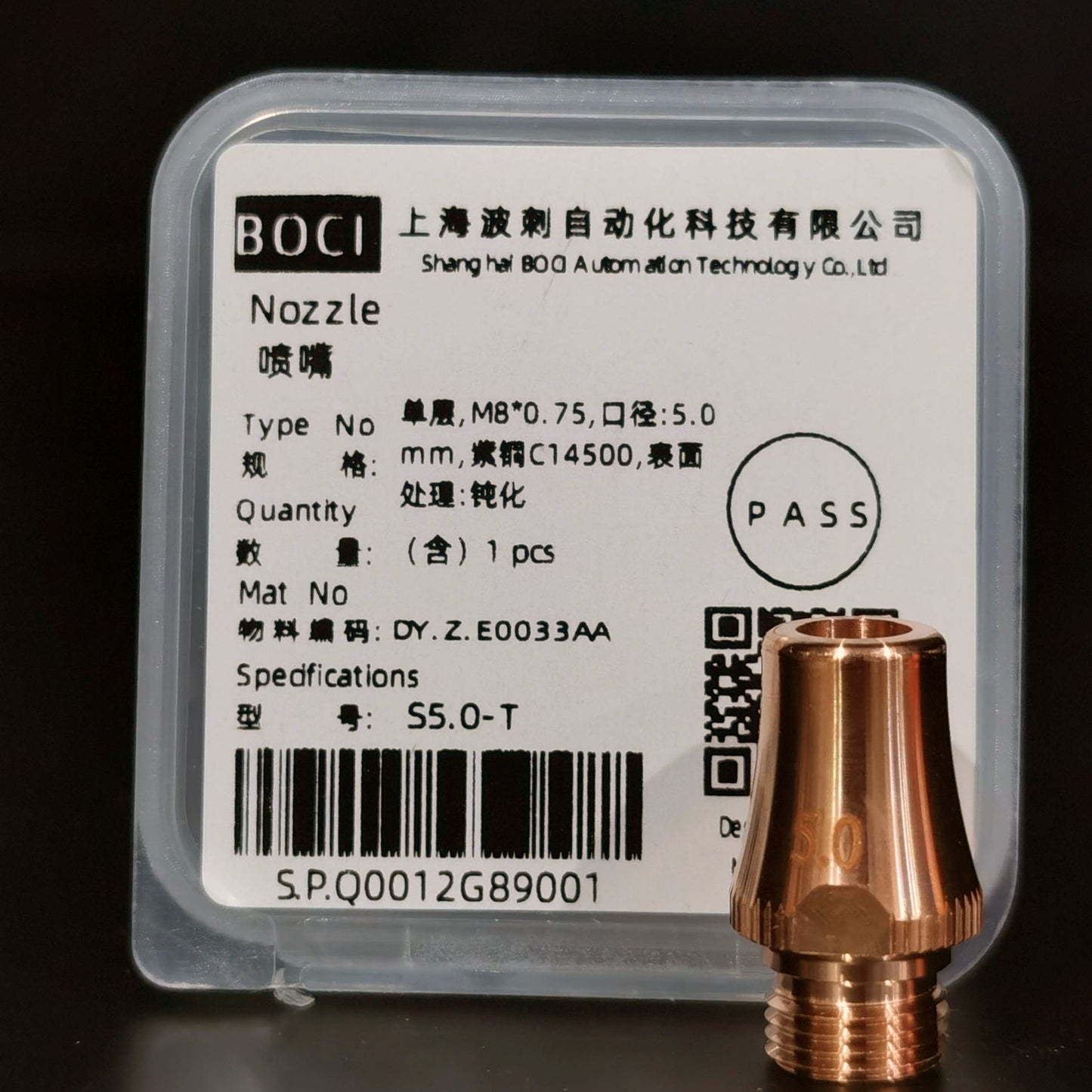

| DY.Z.E0033AA | Single,5.0mm,Tube Bevel |
How to Select the Correct Configuration
Confirm the tube/bevel family, layer or structure, aperture, exact part number and listed BLT model where provided. Overlapping aperture with Flat Bevel or Common nozzle does not establish substitution.
Why Correct Selection Matters
Tube/3D bevel and flat/2D families have different product-family boundaries.
Why Buy From BOCHU.store
The 11 current tube-bevel configurations are retained for verification.
Quick Answers
Is Tube Bevel the same as Flat Bevel?
No.
Does the same aperture mean interchangeable?
No.
What should be checked?
Check the family/application, structure or layer, aperture, part number and listed model.
Browse Tube Bevel Nozzles.
