BOCHU

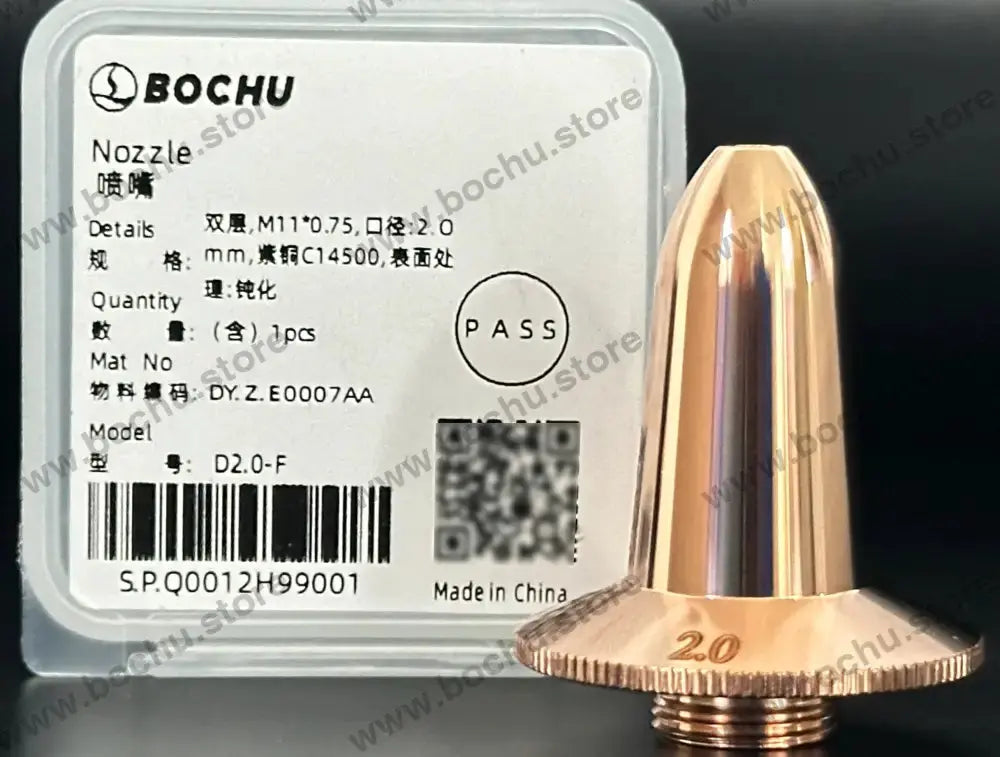

BOCHU BOCI Flat Bevel M11×0.75 Single/Double Nozzles
BOCHU BOCI Flat Bevel M11×0.75 Single/Double Nozzles
Couldn't load pickup availability
Safe & secure checkout
Original BOCHU BOCI M11×0.75 flat-bevel single/double nozzle family for the listed configurations. Confirm the flat-bevel family, thread, single/double structure, aperture and exact part number, using a listed model where CURRENT evidence provides one.
Apertures, Part Numbers and Matching Models
| Part number | Specification | Matching Model |
| DY.Z.E0012AA | Single,1.2mm,Flat Bevel | BLT440F, BLT460F, BLT421, BLT441, BLT461, BLT481, BLT4101, BLT421S, BLT442, BLT462, BLT482, BLT4102, BLT442P, BLT462P, BLT482P, BLT4102P |
| DY.Z.E0002AA | Single,1.4mm,Flat Bevel | |
| DY.Z.E0014AA | Single,1.6mm,Flat Bevel | |
| DY.Z.E0016AA | Single,1.8mm,Flat Bevel | |
| DY.Z.E0006AA | Single,2.0mm,Flat Bevel | |
| DY.Z.E0034AA | Single,2.5mm,Flat Bevel | |
| DY.Z.E0008AA | Single,3.0mm,Flat Bevel | |
| DY.Z.E0009AA | Single,4.0mm,Flat Bevel | |
| DY.Z.E0010AA | Single,5.0mm,Flat Bevel | |
| DY.Z.E0013AA | Double,1.2mm,Flat Bevel | |
| DY.Z.E0004AA | Double,1.4mm,Flat Bevel | |
| DY.Z.E0015AA | Double,1.6mm,Flat Bevel | |
| DY.Z.E0017AA | Double,1.8mm,Flat Bevel | |
| DY.Z.E0007AA | Double,2.0mm,Flat Bevel |
How to Select the Correct Configuration
Confirm the flat-bevel family, M11×0.75 thread, single/double structure, aperture, exact part number and listed model where provided. The same thread does not establish interchangeability with 2D Common nozzles.
Why Correct Selection Matters
The family and profile boundary matters; thread or overlapping aperture alone is insufficient.
Why Buy From BOCHU.store
The 14 current mapped configurations and actual specification table are retained for verification.
Quick Answers
How is Flat Bevel different from 2D Common?
It is a distinct family and profile boundary.
Does the same M11×0.75 thread make them interchangeable?
No.
What should the customer confirm?
Confirm the family, profile, structure, aperture, part number and current table evidence.
Browse 2D Bevel Nozzles.
